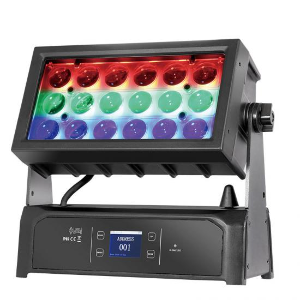

Co6z LED Flood 18x15w RGBW ZOOM WASHER

It is Aluminium & waterproof structure, fashion housing and easy installation, it is with 18*15W RGBW LED as the main light source, 42*0.2w as the backlight source. And 18pcs Lenses of one piece whole plate is used for the optics, Zoom angle:  7-58°, Du to logical LED arrangement ,it  create the facula more homogeneity, better mixing color and more farther the projection distance. It can be widely used for projecting lighting, stage, theater, etc. And it is with powerful two-way RDM function besides DMX control.

●  Optics

. LED qty：

※ 18x15W RGBW LED (power LED), uniform and delicate color mixing effect,

※ 42x0.2W RGB LED（backlight）

. Lens： 18pcs high brightness PMMA Lenses of one piece whole plate

. Beam angle：7-58°Zoom

. Lifetime：50000H，low power consumption, energy conservation

 and environmental protection

●  Colors

. Uniform and delicate RGBW  mixing color system

. Each line of LEDs controlled individually can create more colorful chasing effect

. Static color set up

. RGB backlight LEDs can create soft color mixing effect

●  Specification

. 8 DMX channel modes：3CH/4CH_1/4CH_2/5CH/16CH_1/16CH_2/22CH/34CH international standard DMX-512 channel

. 3 control modes::DMX512、W-DMX、Master-Salve

. 2.4G wireless DMX

. Beam angle：7-58°Zoom

. DMX function： Dimmer、Strobe、RGBW、Macro color、color jumping change、color gradual change 、Rainbow、Auto-program selection、Auto speed、dimmer curve selection、function setting

. Stand-alone mode：color jumping change、color gradual change、Auto-program、slave、Macro color、static color setting、Rainbows、Auto-program selection

. Strobe effect：0-20HZ strobe、Pulse strobe、Ramp up strobe、Ramp down strobe、Random strobe、 Strobe Break Effekt, 5s…..1s、Strobe0-20Hz。

. Dimmer:0-100%16 bit dimming which can control brightness change and closing of 4colors at the same time

. LEDs of each line can be controlled in 4colors

. Dimming way：LED mode and Halogen lamp mode

●  Display

. 2.4inches TFT colorful screen

. High anti-interference four touch buttons

. Settable button lock to prevent imoperation

. Display screen can be reversed 180° and fit for different places installation

●  Software

. Software upgrade：quick software upgrade via DMX cable

. Display the use time of the light, so that customers can know the use details of the light in time

. LED refresh rate：800Hz/1200Hz/2000Hz/3600Hz/25000Hz optional

. 4kinds of dimming curve：linear dimmer、Sqaure dimmer、I. Sqaure dimmer、S-Curve dimmer

●  Other functions

. Setting and addressing：RDM

. LEDs temperature detection system to protect the LEDs

. Fan cooling(the fan change the speed with the temperature changes）

. Fan running mode：Auto mode and high speed mode

●  Power/Signal connection

. Power connection：waterproof Seetronic powerCON IN (SAC3MPX) / OUT (SAC3FPX)

. DMX input：Waterproof DMX XLR  3-pin Seetronic J3F2C-W

. DMX output：Waterproof DMX XLR  3-pin Seetronic K3F2C-W

●  Power

. AC100-240V 50/60HZ

. Power consumption：280W

●  Protection class

. Housing：Die-cast aluminium

. IP class：IP65

●  Operation environment

. operation temperature：-20°C～+40°C

●  Size/weight

. Packaging size：420x380x235mm

. Net weight： 9KG

. Gross weight：10.7KG

●  Certification：

. CE,ROHS
